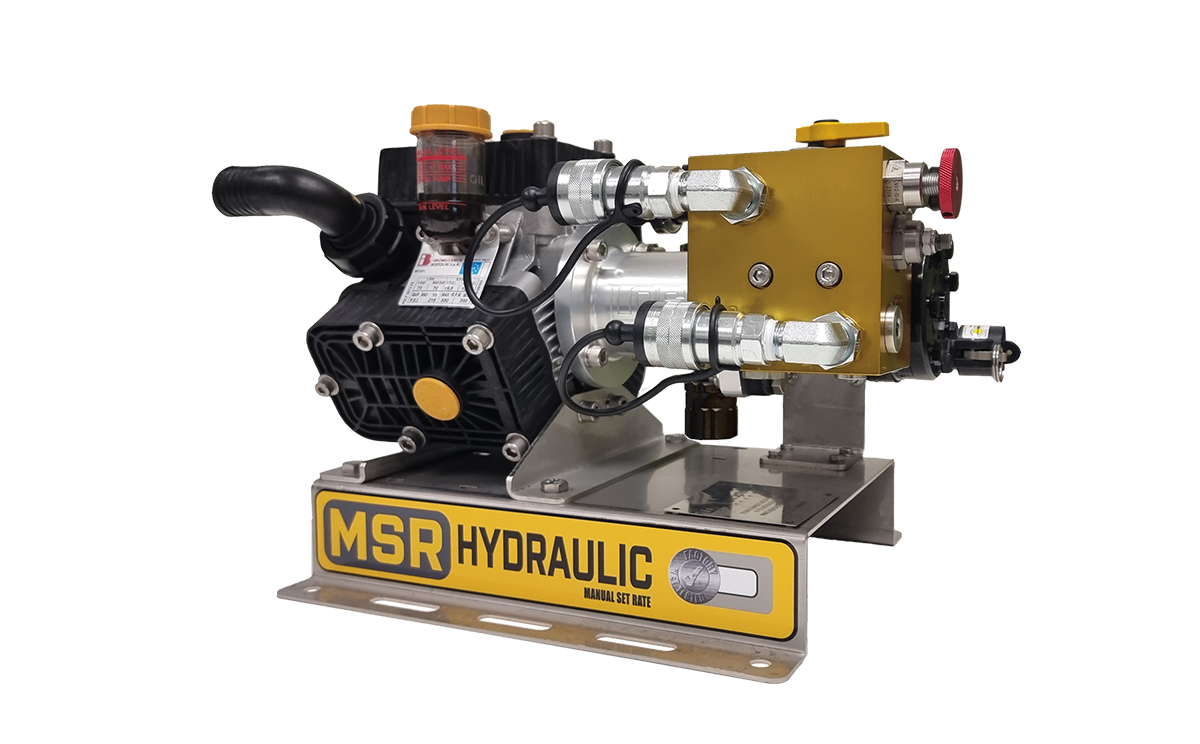

MSR Hydraulic
ORDER CODE: MSR-H
MSR Hydraulic system relies on manual rate control, where application output is set by the operator using a simple valve adjustment and must be adjusted as conditions change. As ground speed changes, application accuracy can vary unless adjustments are made.
Description
This makes them:
Lower upfront cost and easier to operate Ideal for growers who dont want the cost and complexity Ideal for growers starting their liquid journey Well suited to consistent soil types, paddock shapes Steady operating speedsBest suited for:
Irrigated grain, pulse and cotton crops or row crops Smaller broadacre crops or narrow machinery Pasture and hay crop operations Growers new to liquid application Tank capacity up to 4000L | Specifications | |
|---|---|
| Function | Single Liquid – Manual Set Rate |
| Pump Type | Hydraulically Driven Piston Diaphragm Pump |
| Max. Output | 76 LPM 20GPM(US) 16.7GPM(Imperial) |
| Weight | 10kg |
| Hydraulics | 27.5LPM 7.3GPM (US) 6.0GPM(Imperial) |
| Dimensions | 550mm W x 450mm D x 360mm H |
| Includes: |
|
| Advantages: |
|
| Cautions: |
|
